Inform Management Console (IMC) is the Management Software which we use to manage the HPE 3PAR storage arrays. IMC provides the Graphical User Interface (GUI) console through which management tasks become easy for system administrators. You can also use the Command Line Interface (CLI) options like PuTTY, 3PAR CLI etc. to manage the 3PAR arrays.
Here i will explain that how to download and install the HP 3PAR Management Console (IMC). You can install this software on any machine which can access your 3PAR.

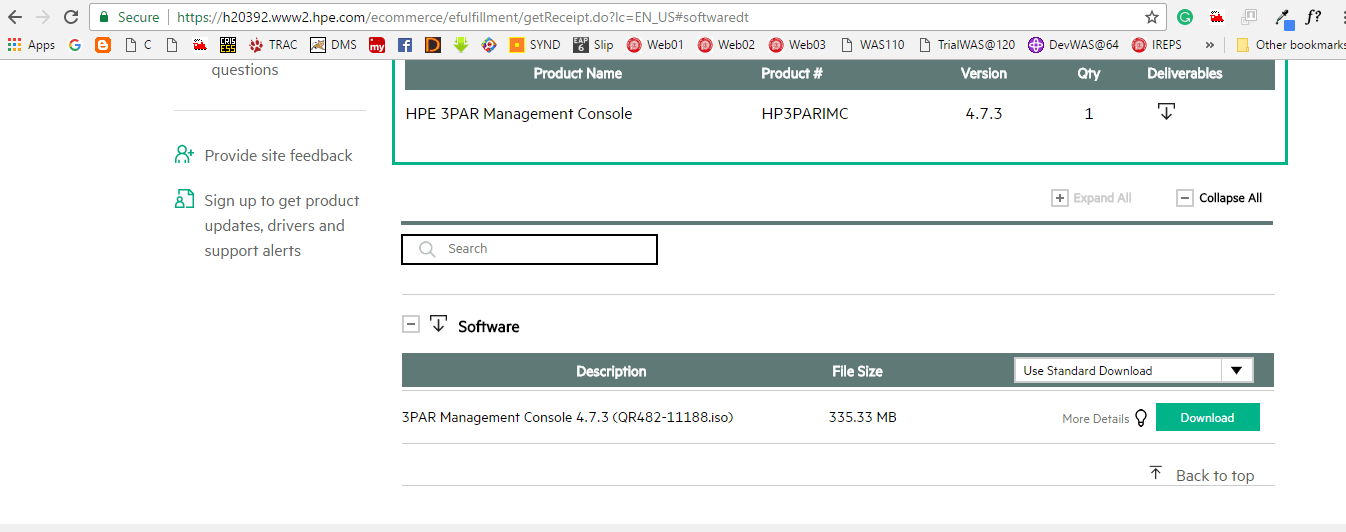

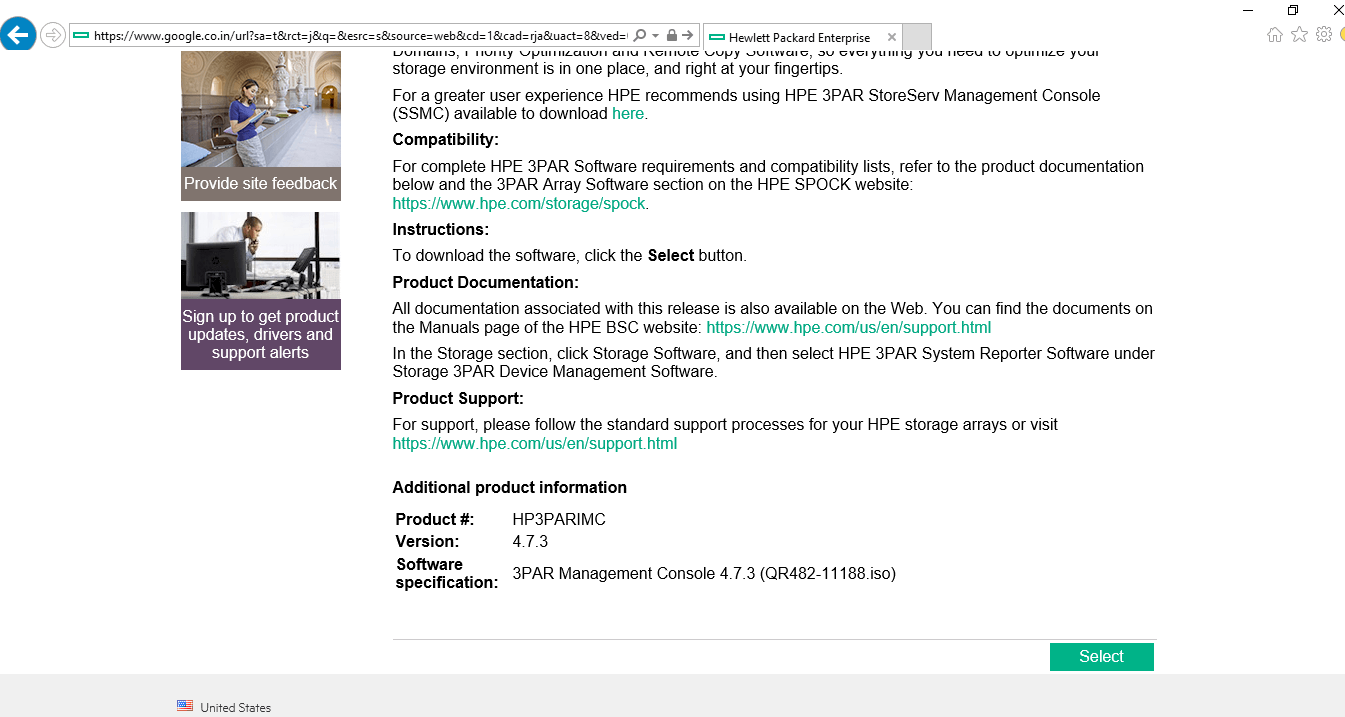

Download HPE 3PAR Management Console (IMC) 4.7.3
3PAR IMC software can be downloaded from the HPE software site. To download the software you need a registered user, if you do not have then please first register yourself. Click on link given below to download the HPE 3PAR management console.
https://h20392.www2.hpe.com/portal/swdepot/displayProductInfo.do?productNumber=HP3PARIMC
Install HPE 3PAR Management Console (IMC) 4.7.3
Once IMC software is downloaded then you are ready for the installation process. Follow the steps given below to install the IMC successfully.
- Double click on the .exe file, and files will be extracted to a temp folder. Once you see the introduction screen click on the next button to continue.
- The next screen will ask you for the installation location. The default location will be C:\Program Files (x86)\3PAR\inform_mgmt_console if you want to change it then choose another location and click on the Next button to continue.
- The next screen will show the pre-installation summary. Verify the installation location that you have selected and ensure that everything is right shown on the screen. To start the actual installation of the software click on the Install button.
- The installation will be completed in a few minutes. Once everything is completed you will be taken to the installation confirmation screen, click on the Done button to quit the installer.
- After successful installation, you can access your 3PAR array by launching this IMC. When you will launch the IMC it will ask for IP Address, user name and password. The default user name and passwords for IMC are 3paradm and 3pardata.
- After successful login, it will ask to confirm the certificate to make the connection trusted. Click on the OK button to confirm the certificate.
Note: The default user name and password for IMC are 3paradm and 3pardata.
